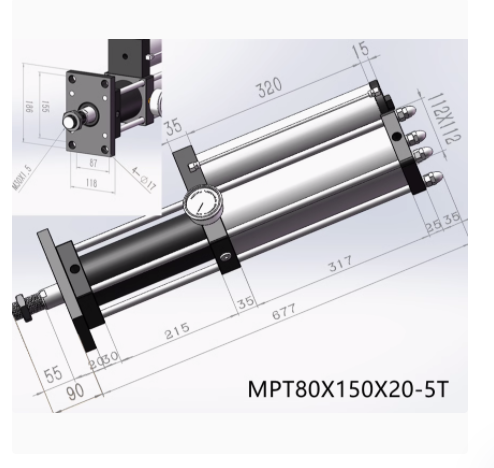

Pneumatic Cylinder APT CPT MPT-80-150-15-5T Supercharged Cylinders

Product Description:

1) Working motion: double motion

2) Working pressure: 2-7kg/cm²Dry Compress Air After Filtering

3) Cycle Oil: ISO VG 68

4) Working Temperature: -5~+60℃(Other Working Temperatures Shall Be On Requested)

5) Operation Speed: 50-700mm/s

6) Oil Cylinder Assure Pressure: 300kg/cm²

7) Air Cylinder Assure Pressure: 15kg/cm²

8) Stroke Difference: +1.0mm

9) Working Frequency: 10 Times/min

Note: Below 5T working frequency about 30 Times/min
  • MPT-80-150-15-5T

  • THKPC

  • 8421399090

Availability:

Product Description

2

Product Description:

1) Working motion: double motion

2) Working pressure: 2-7kg/cm²Dry Compress Air After Filtering

3) Cycle Oil: ISO VG 68

4) Working Temperature: -5~+60℃(Other Working Temperatures Shall Be On Requested)

5) Operation Speed: 50-700mm/s

6) Oil Cylinder Assure Pressure: 300kg/cm²

7) Air Cylinder Assure Pressure: 15kg/cm²

8) Stroke Difference: +1.0mm

9) Working Frequency: 10 Times/min

Note: Below 5T working frequency about 30 Times/min

Features:

Using general pressure can reach a higher force of hydraulic cylinder, no need hydraulic unit
