Piston impact vibrator NTP32

Aluminum shell, corrosion resistant, with special grease; long life assurance, to adapt to different applications
  • NPT32

  • THKPC

  • 8412310090

Availability:

Product Description

Product features

• Power, a small amount of lubrication, quiet
• Frequency 43-146HZ
• Vibration force 150-2039N
• Continuous adjustable parameters (adjustable pressure)
• Maximum operating temperature: 150℃
• Can be customized 200℃
• Suitable for extreme bad environment



• Vibrating
• Emptying
• Conveying
• Dispersing and compacting




Model Frequency/Min. Linear force(N) Air consumed L/ Min.
0.2MPa 0.4MPa 0.6MPa 0.2MPa 0.4MPa 0.6MPa 0.2MPa 0.4MPa 0.6MPa
NTP25 5848 7000 8784 269 438 830 68 82 110
NTP32 2959 4080 5040 289 607 926 71 86 115
NTP48 2618 3456 4320 782 1305 2039 78 90 125

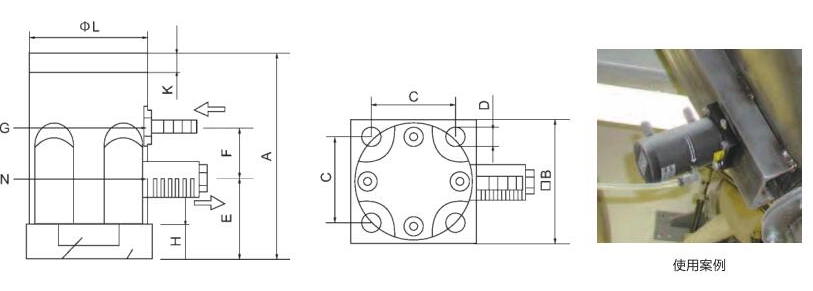

Model A B C D E F G H K L N Weight
mm mm mm mm mm mm Thread mm mm mm Thread Kg
NTP25 90 60 46 6.5 36 14.5 G1/8" 15 51 G1/8" 0.850
NTP32 140 75 51 11 48 32 G1/4" 20 10  70 G1/4" 1.650
NTP48 194 100 78 13 60 51 G3/8" 25 15  95 G3/8" 4.300


11
