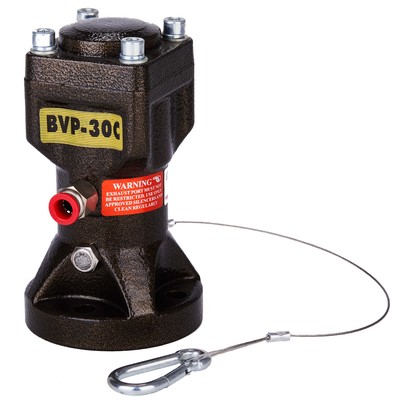

BVP-30C
THKPC
8412310090
Product Description
• Large power, a small amount of lubrication, quiet.
• High strength aluminum alloy hardening treatment, light weight.
• Low frequency vibration, the best effect on bridge damage
• Adjust the amplitude and frequency of vibration
• To solve the tank material attachment, auxiliary material flowing
• Can be used for vibration screening and horizontal conveying equipment
| Piston reciprocating impact | Working pressure | Frequency/Min | Force | Air consumption/Min | Weight |
| Model | (MPa) | (HZ) | (N) | (ANR) | (MM) |
| BVP-30C | 0.2～0.6 | 1765～2857 | 1255～1790 | 186～270 | 1.300 |
| BVP-40C | 0.2～0.6 | 1333～1875 | 1444～2690 | 220～270 | 2.100 |
| BVP-60C | 0.2～0.6 | 1000～3680 | 1543～3680 | 260～295 | 4.350 |
| Piston reciprocating impact | A | B | C | D | H | Inlet | Exhaust | Base |
| Model | （mm） | （mm） | （mm） | （mm） | （mm） | （mm） | （G） | (Shape) |
| BVP-30C | 128 | 90 | 60 | 18 | 11 | 1/8 | 1/8 | Round |
| BVP-40C | 160 | 100 | 75 | 18 | 11 | 1/4 | 1/4 | Round |
| BVP-60C | 208 | 140 | 105 | 20 | 15 | 1/4 | 1/4 | Round |
Installation maintenance and precautions
(1)The vibrator base is welded on the right position, and be fixed with the base of 4pcs M10 * 30 bolts. Solenoid valve, filter, oil mist connect right and well.
(2) the vibrator needs to be pure and dry compressed air, so it is necessary to check the filter regularly,timely replacement of damaged.
(3) check the base bolts regularly to avoid loosening.
(4)If there is fault, it is necessary to inform the manufacturer to maintain,open the cover and remove prohibited
