JAD-5 Auto Drain Valves

Features
•Auto Drain / Air Shut off / Manual Drain
•The water cup is provided with metal protective cover.
•Points for Attention
•When using, the drainer should be installed vertically the drain port facing down.
  • JAD-5

  • THKPC

  • 8481802190

Availability:

Product Description

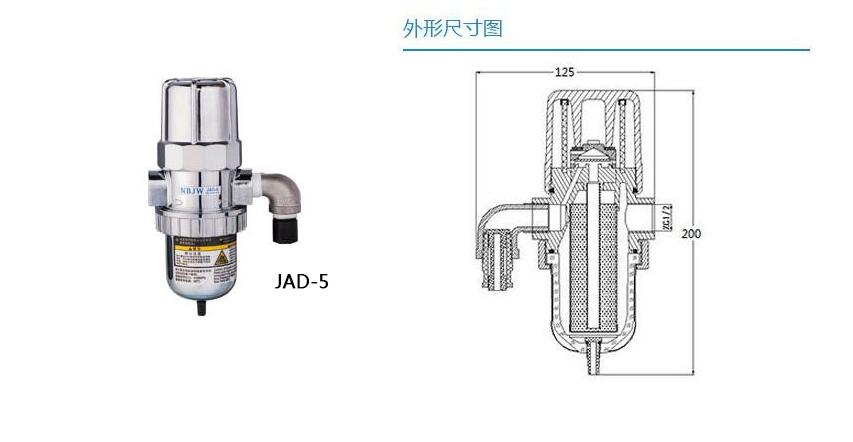

2

•Purpose
This product often applies to auto remove the seeker at the lower places of piping, frozen type air drying machine, oil separator,
Air drying tanks and the bottom of various air filters. It can be installed in the places in convent for manual discharge of sewage. Such as higher, lower and narrow places, especially there’s large consumption of air of frequent water drains. It can prevent the compressed air being resolute by condense water resulting from neglect of manual drain.
•Features
•High reliability forced drainage system.
•Auto Drain
•The water cup is provided with metal protective cover.
•Points for Attention
•When using, the drainer should be installed vertically the drain port facing down.
•Specifications, models and technical parameters

Model

JAD-5

Ensured Pressure Resistance

1.5MPa

Operating Pressure

0.29MPa-0.98MPa

Ambient and Fluid Temperature

2-60℃

Port Siz

RC1/2

Drain Port Size

RC1/2

Drain Status

Normal Open Type

Working Medium

Compressed air
