End Auto Drain Valves

Auto drain; Air Shut off Drain;
Hand since one automatic drain valves are available.
  • JAD402-J
  • THKPC
  • 8481802190

Product Description

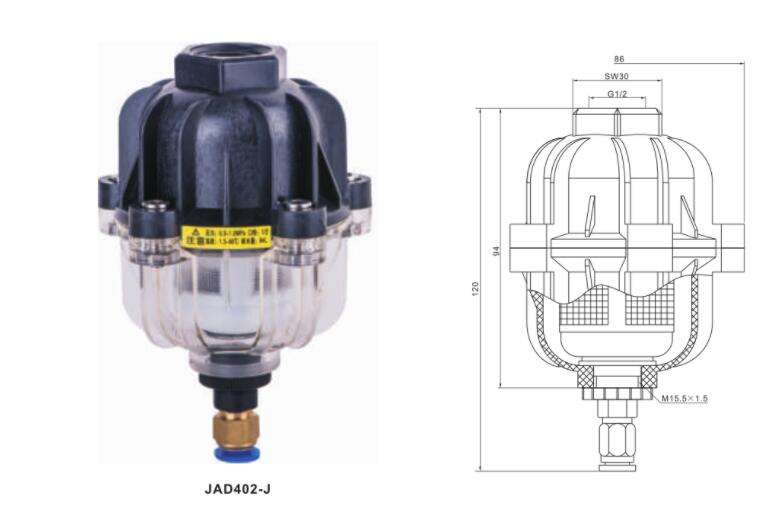

1

Purpose

This product often applies to auto remove the seeoer at the lower pl-aces of piping,frozen type air drying machine,oil separator,
air drying tanks and the bottom of various air filters.ttcan be installed in the pl-aces inconvenient for manual dis-charge of sevage.
Such as higher,lower and narrow places,especially there’S large consumption of air of frequent water d rains.It can prev-ent
thecompressed air being re-polluted by condonse water resul-ting frOm neglect of manual drain.

Fesatures

Auto drain; Air Shut off Drain;
Hand since one automatic drain valves are available.

Points for Attention

When using,the drainer should be installed vertically the drain port facing down

Weight

Net weight: 180g / Inner box weight: 40g

Specifications,models and technical parametesr

Model

JAD402-J

Ensured Pressure Resistance

1.5MPa

Operating Pressure

0.2MPa-0.8MPa

Ambient and Fluid Temperature

5-60℃

Port Size

G1/2

Drain Port Size

Φ 6

Drain Status

Normal Open Type

Woring Medium

Compressed air


Our Company is ISO-9001 certified, with a history of 10 years in providing Pneumatic Components
