Auto Drain Valve SKP Series

SKP:Machine Type(SKP series)
FKS15.5 /FNS15.5:Drain Principle
(F:Float;K:Connect the plug quickly;N:Internal thread;S:Manual;15.5:The figure is stand for the water drainage outlet’s diameter)
  • JADV-SKP-FKS15.5,JADV-SKP-FN15.5
  • THKPC
  • 8481802190

Product Description

Technical Parameter


Remarks:This machine has the same function structure as the drainage valve produced by SKP company of Korea.
•Range of Application
•This product is installed at the bottom of water cups which are automatic drainers, air filter regulators and it can auto discharge the condense water gathered in the water cup.
•Technical Requirements
•Working medium:compress air / Ambient and media temperature:5-60℃ / Operating Pressure:0.2-0.8MPa
•Features
•Auto drain / Air Shut off/Manual Drain
•Points for Attention
•When using, the drainer should be installed vertically and the drain port facing down.

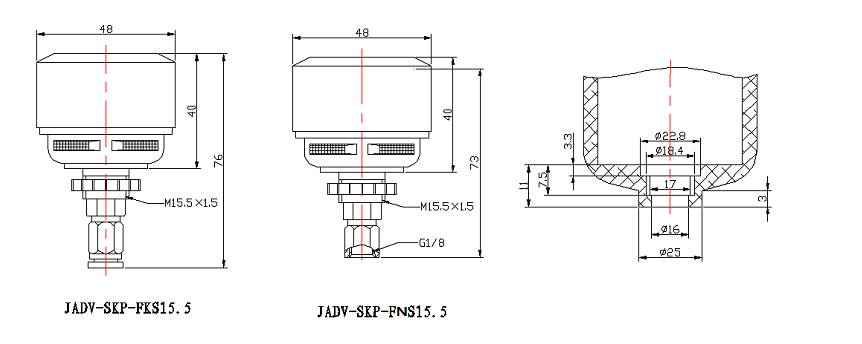

Overall Dimension

4

3
