Auto Drain Valve AIGNEP Series

atlas:Machine Type(300/400 series)
GNS14:Drain Principle(G: lever type;N:Internal thread;K:Connect the plug quickly;S:Manual;14:The figure is stand for the water drainage outlet’s diameter)
  • JADV-300-GNS14,JADV-400-GNS14
  • THKPC
  • 8481802190
Availability:

Product Description

Ordering Code



atlas:Machine Type(300/400 series)
GNS14:Drain Principle(G: lever type;N:Internal thread;K:Connect the plug quickly;S:Manual;14:The figure is stand for the water drainage outlet’s diameter)

panerai replica watches  www.payreplicawatch.com  tag heuer replica watches

Technical Parameter


Remarks:This machine is applicable for Filter Italy AIGNEP
This machine is applicable for Filter MINDMA

•Range of Application
•This product is installed at the bottom of water cups which are automatic drainers, air filter regulators and it can auto discharge the condense water gathered in the water cup.
•Technical Requirements
•Working medium:compress air / Ambient and media temperature:5-60℃ / Operating Pressure:0.2-0.8MPa
•Features
•Auto drain / Air Shut off/Manual Drain
•Points for Attention
•When using, the drainer should be installed vertically and the drain port facing down.

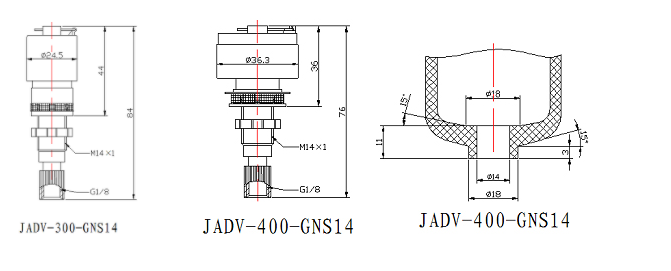

Overall Dimension

2


1
